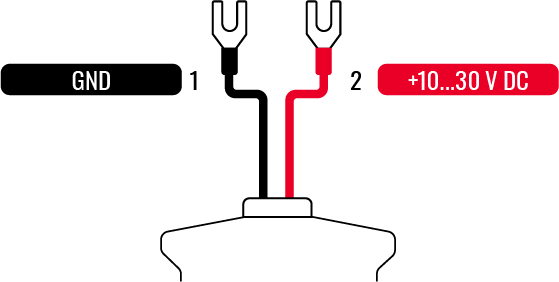

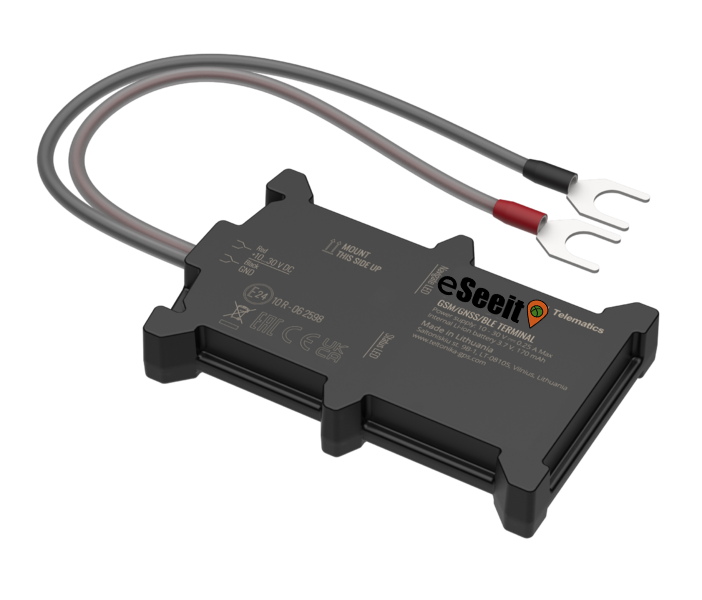

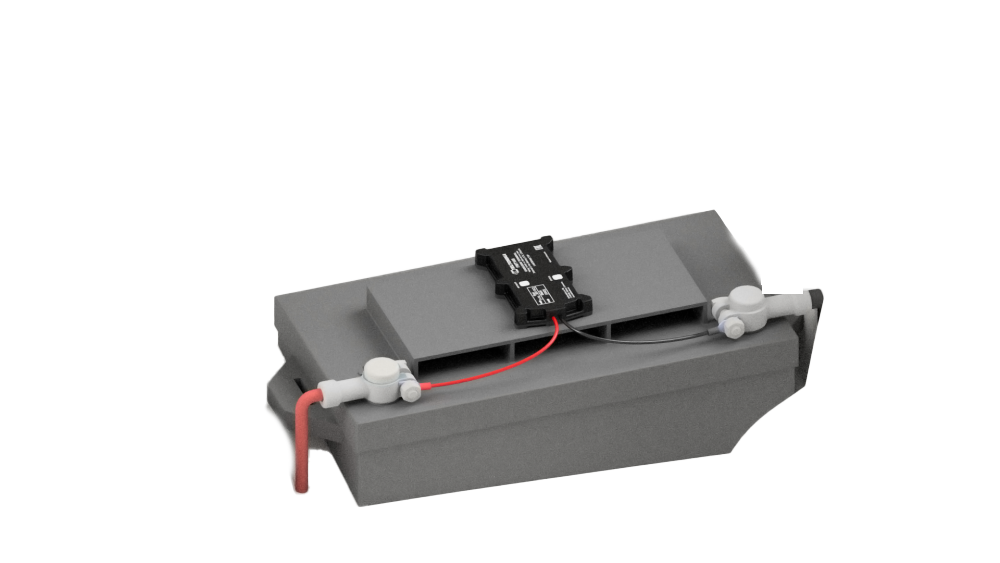

Den simple installation grundlæggende tracker bruger kun plus, minus forbindelse for at få det til at fungere. Alle rapporter og alarmfunktioner vil fungere som normalt, men tænding vil blive registreret fra GPS-bevægelser.
Use Case - Leasing, biludlejning, taxa, leveringskøretøjer, kontor- og private køretøjer.
Scenarios - Grøn kørsel, registrering af for høj hastighed, registrering af jamming, GNSS-brændstoftæller, startspærre, detektion,
Compact and Robust Casing - IP65-klassificeret kabinet er designet til at modstå dårlige vejrforhold
Input voltage range - 10–30 V DC med overspænding og omvendt polaritetsbeskyttelse
Back-up battery - 170 mAh Li-Ion battery (0.63 Wh)
Power consumption - At 12V < 3.21 mA (Deep Sleep). At 12V < 3.75 mA (Online Sleep). At 12V < 5.48 mA (GPS Sleep). At 12V < 24.41 mA (nominal)
ApprovalsRegulatory - CE/RED, E-Mark, EAC, RoHS, REACH, SIRIM QAS
Bluetooth Specification- 4.0 + LE
Supported peripherals - Temperatur- og fugtighedssensor

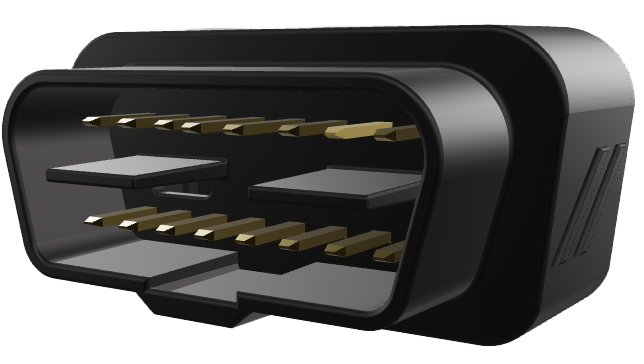

Hvad er en OBD II device?
OBD II-standardenheder kan tilsluttes direkte til køretøjets OBD-terminal, og den vil fungere med alle rapporter med de tilgængelige data på OBD-terminalerne. Platformens funktioner kan fungere som normalt for alle rapporter og advarsler.
Scenarios - Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Compact Casing - IP41-klassificeret kabinet er designet til at modstå indvendige forhold i køretøjet.
PowerInput voltage range - 10–30 V DC with over voltage and reverse polarity protection
Back-up battery - 3.7 V 45 mAh
Power consumption - At 12V < 7 mA (Deep Sleep)At 12V < 7 mA (Online Sleep)At 12V < 8 mA (GPS Sleep)At 12V < 28 mA (nominal)
Regulatory - CE/RED, E-Mark, EAC, RoHS, REACH, SIRIM QAS
Bluetooth Specification - 4.0 + LE
Device Fastning- ULTRA-SMALL CASING - 29,1 mm bred kabinet gør det muligt for denne enhed at passe perfekt i en hver bil. Ubesværet plug and play og start sporing.
Supported peripherals- Temperature and Humidity sensor
Hvordan det virker? Sporingen er ubesværet nem. Tilslut og brug. Tændingsdetektering via bevægelse. Alle rapporter og meddelelser kan fremstilles.
Scenarios - Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Compact Casing - IP41-rated casing is designed to withstand interior conditions of the vehicle.
PowerInput voltage range - 10–30 V DC with over voltage and reverse polarity protection
Back-up battery - 3.7 V 45 mAh
Power consumption - At 12V < 7 mA (Deep Sleep)At 12V < 7 mA (Online Sleep)At 12V < 8 mA (GPS Sleep)At 12V < 28 mA (nominal)
Regulatory - CE/RED, E-Mark, EAC, RoHS, REACH
Bluetooth Specification - 4.0 + LE
Device Fastning. - ULTRA-SMALL CASING - 29,1 mm bred kabinet gør det muligt for denne enhed at passe perfekt i en hver bil. plug and play og start tracking.
Supported peripherals - Temperature and Humidity sensor
Use cases - Machines, Construction Vehicles, Insurance theft control, Agriculture Vehicles.
Ingress Protection Rating - IP67
Input voltage range - 6 - 30 V DC with overvoltage protectionInternal
Back-up battery - 1800 mAh Li-Ion battery (6.66 Wh)
Regulatory - CE/RED, E-Mark, EAC, RoHS, REACH
Bluetooth Specification - 4.0 + LE
Supported peripherals - Temperature and Humidity sensor, Universal BLE sensors support

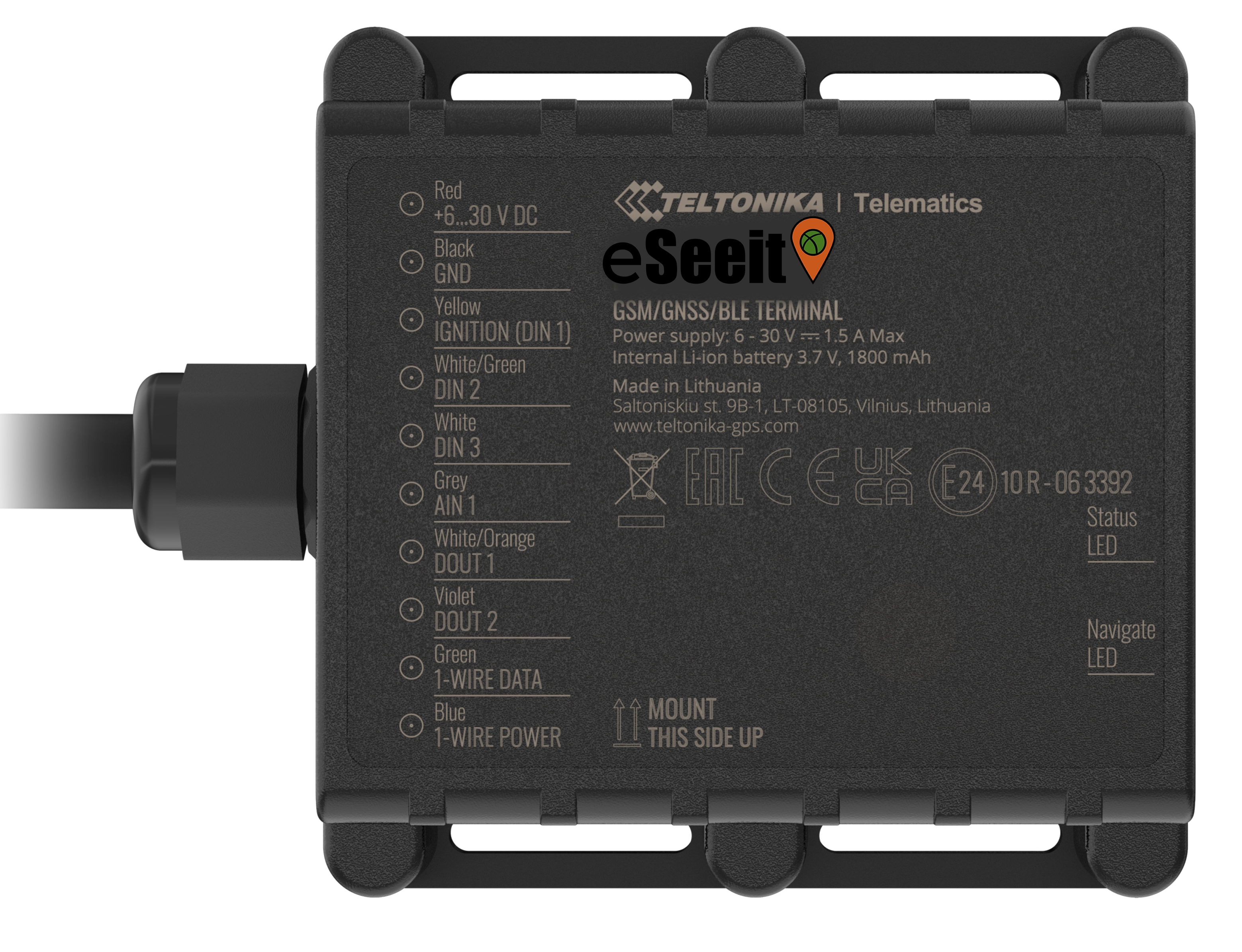

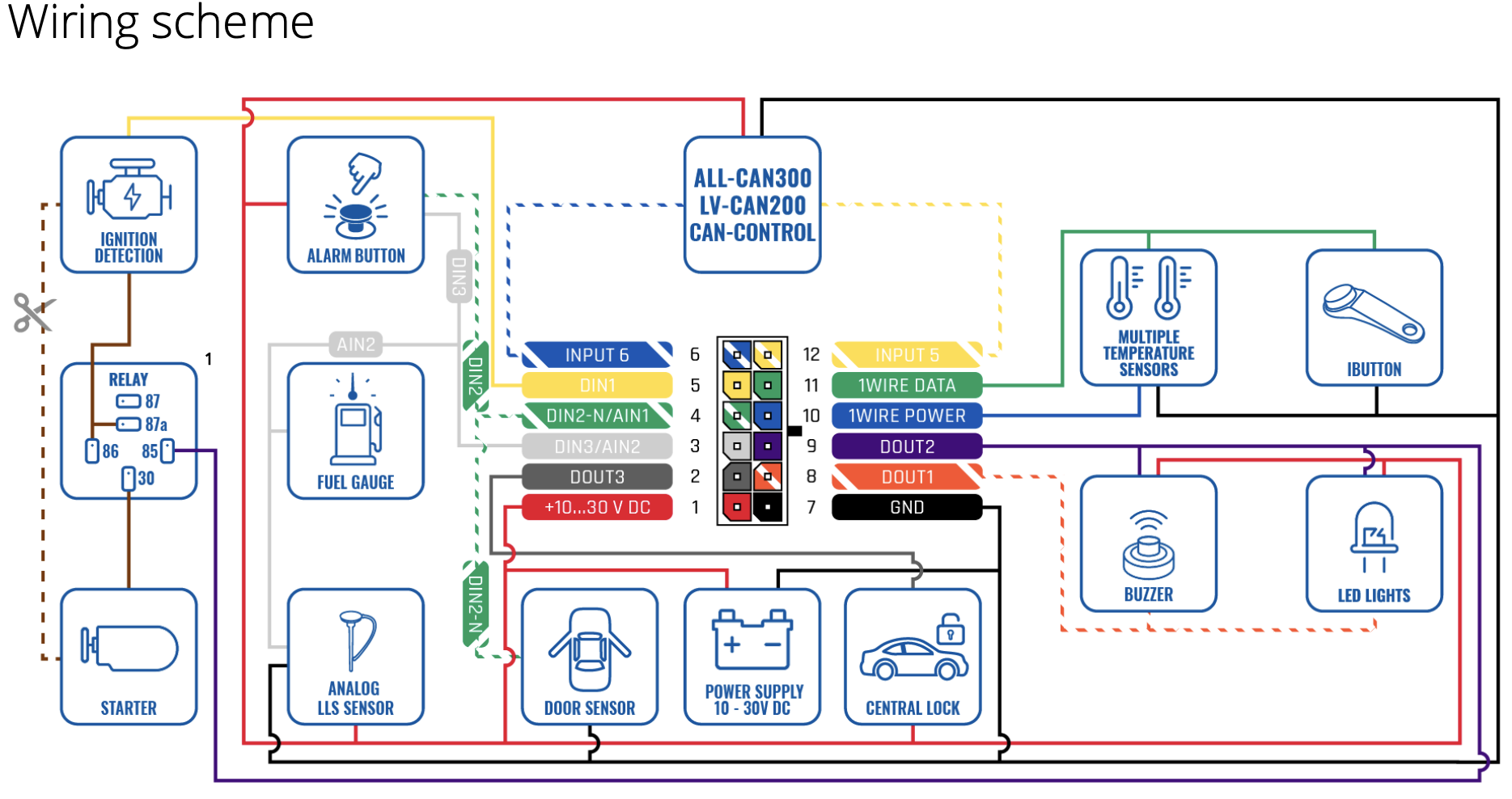

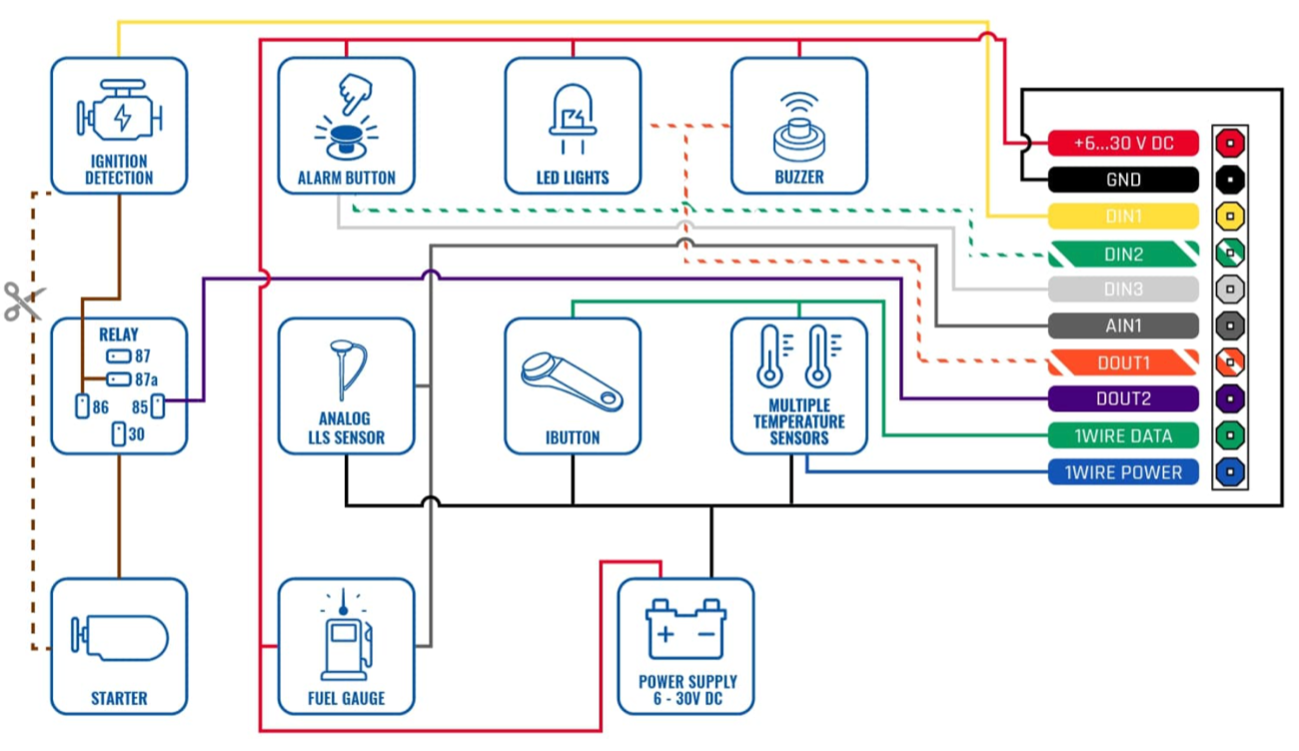

Device Fastning - External power and Ignition and IN put OUT put installation.
Scenarios - Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter,Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence,Manual Geofence, Trip
1.5 W max. device consumption
Energy consumption at 12 V:GPRS: average 40.1 mA r.m.s;
Nominal: average 28.3 mA;GPS Sleep: average 15.7 mA;Online Sleep: average 4.2 mA;Deep Sleep: average 3.9 mA;Ultra Sleep: average 2.1 mA
Use cases - Vehicles, Insurance theft control, Agriculture Vehicles. Fleet management
Ingress Protection Rating - IP41
Input voltage range - 10 - 30 V DC with over voltage protection
Back-up battery - 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Regulatory - CE/RED, E-Mark, EAC, RoHS, REACH
Bluetooth Specification - 4.0 + LE
Supported peripherals - Temperature and Humidity sensor,Universal BLE sensors support
Device Fastning - External power and Ignition and IN put OUT put installation.
Scenarios - Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

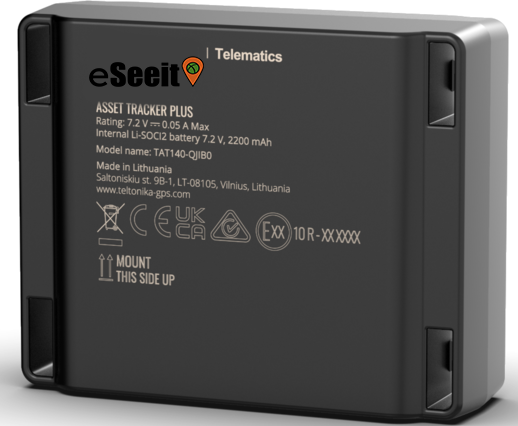

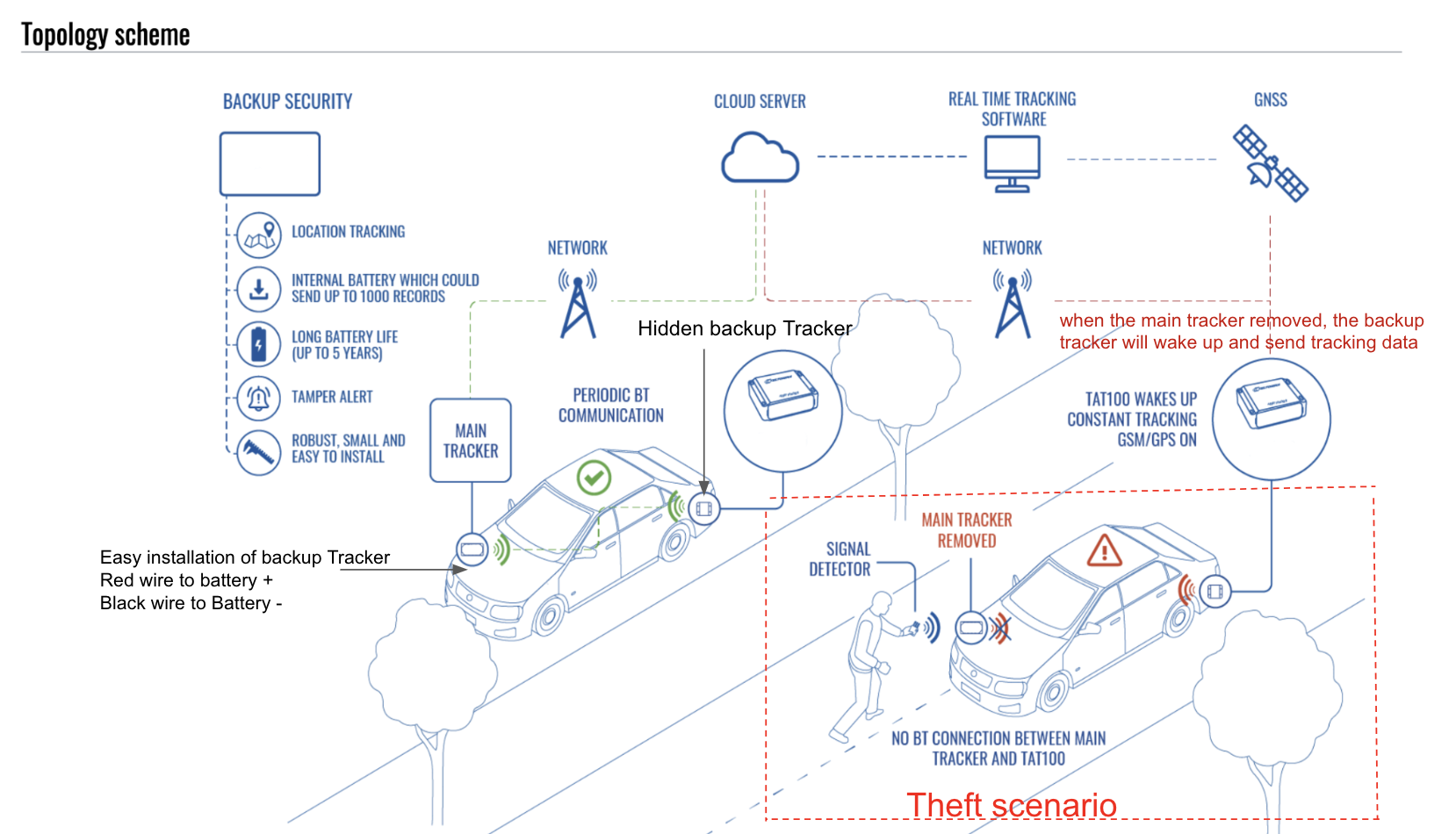

Use cases - Asset Tracker is an advanced tracking solution compatibility device.Equipped with a robust, practical and water-resistant (IP68) enclosure and different mounting accessories, the tracker is extremely easy to install and use. As it is developed on a low powerBluetooth chipset, long battery life provides endless possibilities in various use cases
Scenarios - Enhanced tamper detection, Accelerometer wake up, GNSS and LBS, Indoor Tracking, Bluetooth sensor support (Light, Temperature, Humidity, etc.), Recover mode, Manual Geo- fence, Movement detection,Scheduler with time zones, Tracking on stop / on move, Backup Tracking
Ingress Protection Rating - IP68
Input voltage range - Extremely low self-discharge Li-SOCl2 swappable battery,
7.2V 2200 mAh (15,84Wh)
Regulatory - CE/RED, EAC, RoHS, REACH
Bluetooth Specification - Bluetooth Sensors (up to BLE 5.0)
Device Fastning - Magnetic mount, strap and additional holder mounting possibilities.

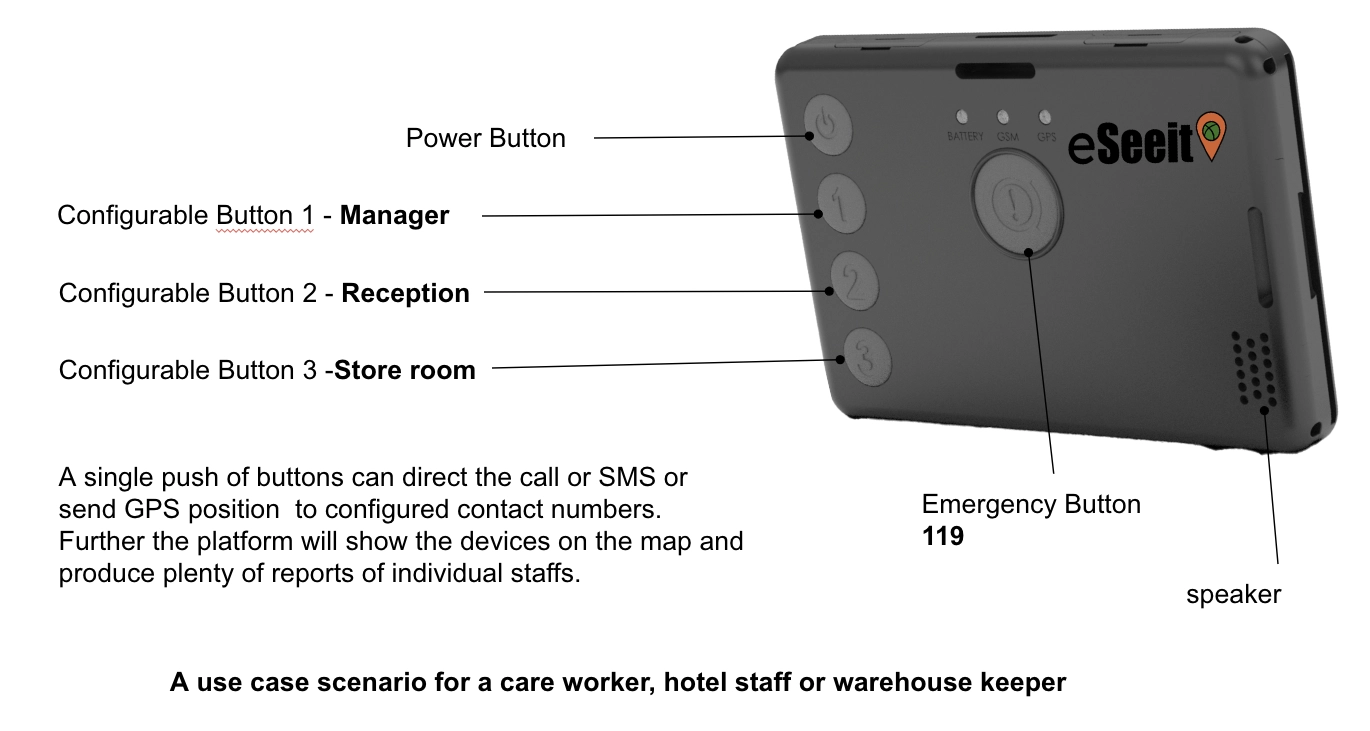

This autonomous tracker is designed for everyone who performs activity without close or direct supervision of others, for example, healthcare, maintenance, social and lone workers or employees working out of standard working hours. The device acts as a solution to ensure social distancing whilst collecting data on workers’ actions over the working day. Strong battery, High-quality voice communication for emergencies, five programmable buttons, man-down and no movement scenarios are among the key functions that make this device most wanted in the market.
Two-way voice communication,Man-Down, Alarm & No Movement scenarios, 5 configurable buttons,Up to 5 Call/SMS recipients in case of emergency event
Scenarios - Alarm button, Man-Down Detection, Home Zone, Proximity Detection, Amber Alert, Inside Tracking,Movement/No Movement Events, Over Speeding, Action On Call feature, RealTime tracking, traffic saving, Asset Tracking, Power On/Off event, Event on a Pressed Button, On Demand tracking via button press, Beacon On Demand tracking, range exit alerts,
Ingress Protection Rating - IP30
Input voltage range - 1050 mAh Li-Ion battery, Charging 5V DC with over-voltage protection.
Regulatory - CE/RED, EAC, RoHS, REACH
Bluetooth Specification - Bluetooth Sensors (up to BLE 5.0)
Dimension- 95 x 64 x 11 mm (L x W x H)

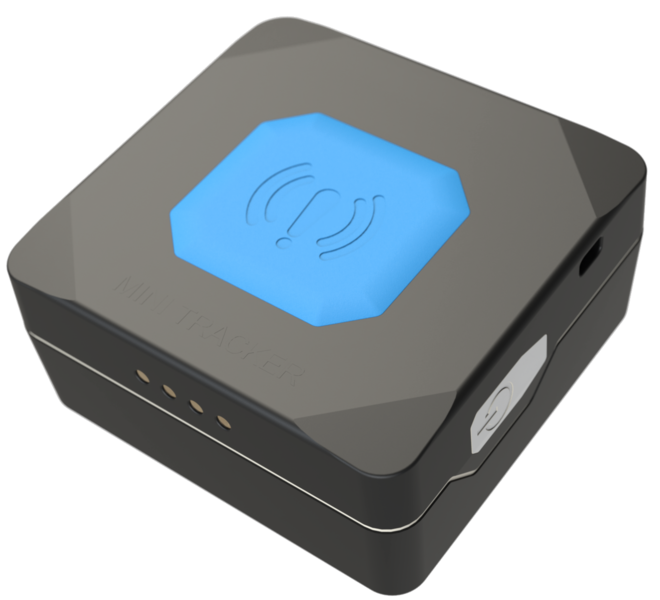

An autonomous personal tracker with GNSS, GSM and Bluetooth connectivity.Our mini tracker is designed for the monitoring of people, pets and cars. It can also be applied for employee control, security staff at the sport events and other use cases to ensure security and control. IP67 waterproof case provides convenient usage, even in harsh conditions. The large battery‘s capacity expands the application range where long battery life is needed. Also,
ALARM BUTTON- Easy to reach, instant messaging in case of emergency
LIVE TRACKING - Real time monitoring of employee location
EXTRA SMALL - Dimensions only 44x43x20 mm. Such a device can be easily hidden and work for long hours
Power - 3.8 V 800 mAh rechargeable Li-ion battery
Scenarios - Alarm button, Man-down detection, Home zone, Inside tracking, Movement/No Movement Events,Action on call feature, Real Time tracking
Supported peripherals - Bluetooth , LE Temperature and Humidity sensors and LE Temperature sensors support, iBeacon.

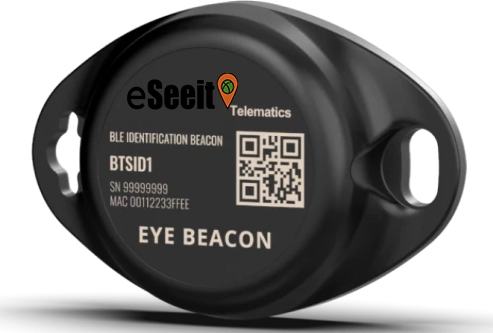

Perfect for traceability use cases, delivery tracking, monitoring of various movable objects in logistics (trailers, containers), agriculture (tractor attachments), and constructions (tools and inventory). Sensors data makes it especially suitable for cold chain refrigerator use cases. The built-in accelerometer can detect item movement, pitch and roll of the device
Use cases - Beacon ID, LED, Temperature, Humidity, Accelerometer, Magnet detection.
COMPACT AND ROBUST CASING- IP67-rated casing is designed to withstand poor weather conditions
Capacity - 600 mAh
Battery life (Tx=2 dBm; interval: 3 s) - 2.5+ years
Battery life (Tx=2 dBm; interval: 5 s), default - 4+ years
Battery life (Tx=2 dBm; interval: 10 s) - 5+ years
battery Replaceable - No
Dimension - 56,6 mm x 38 mm x 13 mm , 18g wt.
Mounting - Two holes to screw/leash/strip, tape
